A powder coating oven is the device that converts powder that is dusty to create a hard, shiny, scratch-resistant surface. Choose the wrong oven- too small, too weak, or built for something other than curing- and even a flawless spray job can not work. This guide will explain the process of these ovens to determine what makes a good one from one that isn’t and the best way to decide between making your own or purchasing a specially-designed Coating Oven.
What Is a Powder Coating Oven?
The Coating Oven for powder coating can be described as a hot enclosure that cures the powders that are coated to give a long-lasting appearance by melting the powder and permitting it to form an uniform film. it is kept at temperatures that permit for the chemical cross-linking of. The majority of them run between 300 and 450AdegF, employing forced-air convection in order to keep the heat evenly distributed across the entire.
This is the shorter version. In the longer variant, that’s where the majority of people are wrong.
How Curing Actually Works
The process of coating powder begins with a dry mixture of resin and pigment electrostatically sprayed onto the exterior of a metallic component, which is grounded. In its original form, it is essentially dust that is bonded on the metal surface. The Coating Oven is what transforms it into a coat.
The cycle is split into four phases:
- Loading: AEUR parts are placed on racks, hooks, or even a conveyor, separated so that air circulates Coating Oven each surface
- PreheatThe oven is able to bring both the air and part to a temperature
- Flow-out, cure and curing” approximately 300 degrees F The powder melts and then flows into a smooth film. When it is at the temperature of your choice, the resin cross-links to form an extremely solid and bonded layer
- “Cool-down” components are removed and left to set completely prior to handling.
The One Detail That Trips Up Almost Everyone
Each powder’s technical data sheet provides a cure timetable, such as “20 minutes at 400AdegF.” This refers to the “part of the metal’s temperature (PMT)* AEUR” rather than the oven’s temperature of air.
The Coating Oven could reach 400 degrees within minutes of closing the door. A densely racked or thick piece could take 10aEUR- 15 minutes to get to a similar temperature. If you set your timer before the Coating Oven is hot and not when the component is ready, you’ll end up with parts that appear finished, but are not fully cured beneath”- fragile, weak, and susceptible to failure early.
Professional shops verify PMT using a thermocouple contact or an infrared thermometer instead of relying on the Coating Ovens dial by itself.
Types of Powder Coating Ovens
| Type | Best For | Typical Use |
| Benchtop/DIY Oven | Hobbyists | Building custom oven projects, testing designs, and fabricating brackets, wheels, and other components. |
- Batch oven: small shops and mixed-size parts • Load, cure, load, and unload aEUR” each batch one at a
Walk-in oven More parts, growing shops Furniture, frames, larger assemblies
Production in high-volume continuous flow with no limit on components
Batch ovens dominate the market; they make up around 58 percent of revenue generated by curing Coating Ovens in large part because they allow shops the flexibility to deal with different sizes of parts and scheduling without having to redesign a production line. Conveyor Coating Ovens, however, can only be considered if production is steady and reliable enough to warrant a fixed-line speed.
Electric or. Gas: Which is the best option for you?
Electric ovens are less complicated to install, don’t require gas lines, and are the preferred option for benchtops as well as small-scale batch configurations. They’re the most commonly used option for small-shop and hobbyist use.
Gas ovens are more efficient and cost less to operate at a scale; however, they also contain an open flame and require venting that is in good order and in compliance with fire code. The majority of manufacturers do not offer electric heating beyond about 40 sq ft of Coating Oven space since electric is inefficient beyond that point; gas comes in after that.
A quick guideline: If your Coating Oven isn’t big enough to be plugged into a standard outlet, opt for electric. If you’re planning to size an oven for furniture, frames, or complete manufacturing runs, using gas is typically the most practical and affordable option.
What Should It Cost?
Pricing scales directly in relation to the size of the production and its purpose:
| Tier | Price Range | Typical Buyer |
| DIY / Hobbyist Oven | €200–€1,500 | Home garages, hobbyists, and small component projects |
| Small-Business Batch Oven | €1,500–€10,000 | Growing workshops and small manufacturing businesses |
| Industrial Batch / Conveyor Oven | €10,000+ | High-volume production and industrial manufacturing |
Customized and walk-in ovens designed on a specific footprint can be outside of these ranges based on the insulation, steel gauge, and the heating system.
Can You Use a Regular Oven for Powder Coating?
Technically speaking, aEUR” lots of amateurs begin with a big toaster or a kitchen appliance that they can use as a spare. Practically speaking, there are limitations that you should be aware of prior to deciding to attempt this.
Where a converted oven performs fairly well:
Small parts, hardware, brackets, small wheels
- Occasional, low-volume use
A space that is separate from food preparation
Where it isn’t enough: It is:
- Airflow. The purpose-built ovens utilize high-powered fans to ensure uniform heating; kitchen ovens are often unable to maintain a consistent temperature throughout the entire interior, which leads to an unbalanced cure.
- Safety. Fine powder can be explosive close to heating elements. Industrial ovens have protection against explosions and shielded elements; the kitchen oven comes with none of these. Gas kitchen ovens have an open flame that is not a good idea to spray near.
- Contamination. After an oven is cured with a coating of powder, it’s not suitable for use with food preparation. The fumes and residues could transfer.
Size and consistency. Kitchen ovens go over the top of their space. Most homeowners outgrow them within a couple of projects.
If you opt for this method, use it only to cure (never spray it). It should be kept in a place which is well-ventilated and not in close proximity to spark sources. Do not return it into the kitchen once it has been removed.
Safety and Code Compliance
Two different standards govern this equipment. It’s easily confused:
“NFPA 33” governs the spray application of powder in the booth, as well as the actual spraying
process
NFPA 86 is the industry standard for the oven and curing sides of the insulation, as well as heating elements and safety devices
They are generally classified as appliances of Class B, as well as their electrical components burners, safety controls, flame monitors) must have ETL, UL, or CUL listing. Fire codes in your area (often that refer to often referencing the International Fire Code, Chapters 24 and 30) might have additional specifications, so it’s worth consulting with the local authority prior to installing gas-powered equipment or a larger walk-in unit.
Sizing: How Big Do You Actually Need?
The Coating Oven should be sized to fit the largest possible part with a margin of aEUR” not for the task you’re planning to coat this week. The most common error is to purchase precisely to match the current project but then outgrow the Coating Oven in a couple of months. A rough guideline is:
Small wheels, small hardware brackets for a benchtop oven
Bike frames Cabinets, small assembly a+’ a mid-sized baker ($1,500aEUR”$10,000 range)
- Furniture, automotive parts, run, large volume + walk-in conveyor oven
A Simple Decision Framework
| Your Situation | Best Fit |
|---|---|
| Sometimes curing small parts | Benchtop electric oven or a converted kitchen oven used exclusively for powder coating/curing |
| Small-scale business with mixed part sizes and increasing volume | Gas or electric batch oven |
| High, steady production volume | Gas conveyor or tunnel oven |
| Large or oversized parts | Walk-in industrial batch oven |
Common Mistakes to Avoid
- Activating the cure timer once the oven is at temperature, instead of when the component reaches
- Buying an oven size for your current projects, but no room to expand
Utilizing an oven that has been converted to a kitchen for spraying as well as food afterwards
Avoiding the PMT probe and instead relying on the oven’s thermostat by itself
In the absence of the local fire code for gas-fired equipment
Recommended Equipment by Tier
If you are starting or re-evaluating your existing equipment, a handful of certain products have been consistently recommended as good choices in the price ranges mentioned in the previous paragraphs:
Eastwood HotCoat Benchtop Coating Oven AEUR” is an electric appliance specially designed for curing, not converted from the kitchen. It’s the simplest method to avoid the security and contamination concerns of an Coating Oven that has been converted, while remaining within the price range of a hobbyist. *Oster Extra Large Digital Toaster Oven (TSSTTVDGXL-SHP) AEUR” is often recommended by DIY powder coating forums as the best toaster Coating Oven alternative for those who are starting with an old appliance before deciding to purchase dedicated equipment.
Eastwood PCS250 Dual Voltage HotCoat Coating Gun. Coating Gun typically is used with a benchtop oven to serve as an initial spray setup with an adjustable voltage to suit smaller parts as well as larger surfaces.
An infrared thermometer handheld or thermocouple probe for contact(such as those from Fluke) (such as those made by Fluke) AEUR” is cheap protection against the most frequently recurring error that is relying on oven temperature rather than the measurement of PMT directly.
A small industrial batch oven made by an organization such as Global Finishing Solutions or Powder-X AEUR” is the logical next step when the volume is over an Coating Oven that is benchtop, with components that are UL-approved and NFPA 85 compliance right straight out of the box.

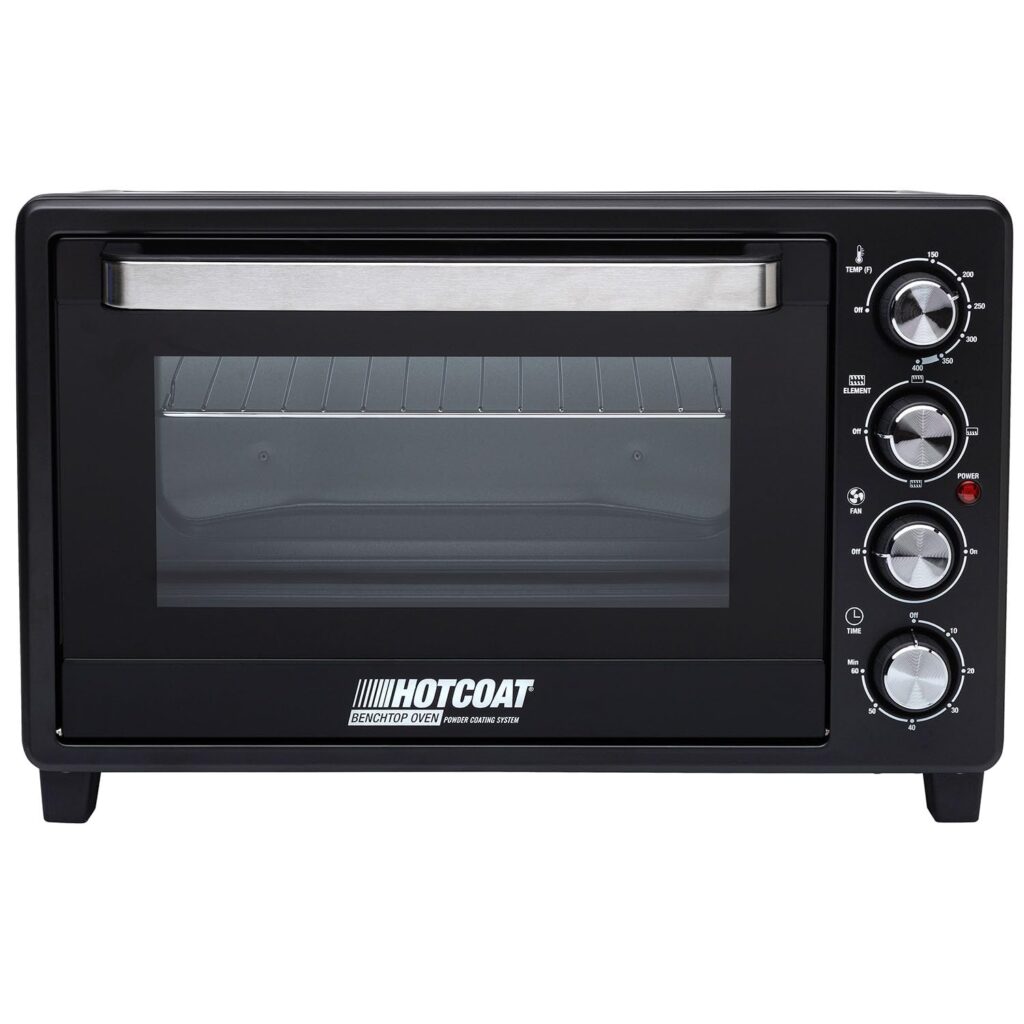

Eastwood HotCoat BenchTop Powder Coating Oven
The Eastwood HotCoat BenchTop Powder Coating Oven is one of the most popular choices for DIY enthusiasts and small workshops. It is designed specifically for curing powder-coated metal parts rather than cooking food, ensuring clean and consistent finishes. With adjustable temperatures from 150°F to 400°F, upper and lower heating elements, and a built-in circulation fan, it provides even heat distribution for professional-quality results. Its compact design and standard 120V power requirement make it an excellent option for garages and home workshops.

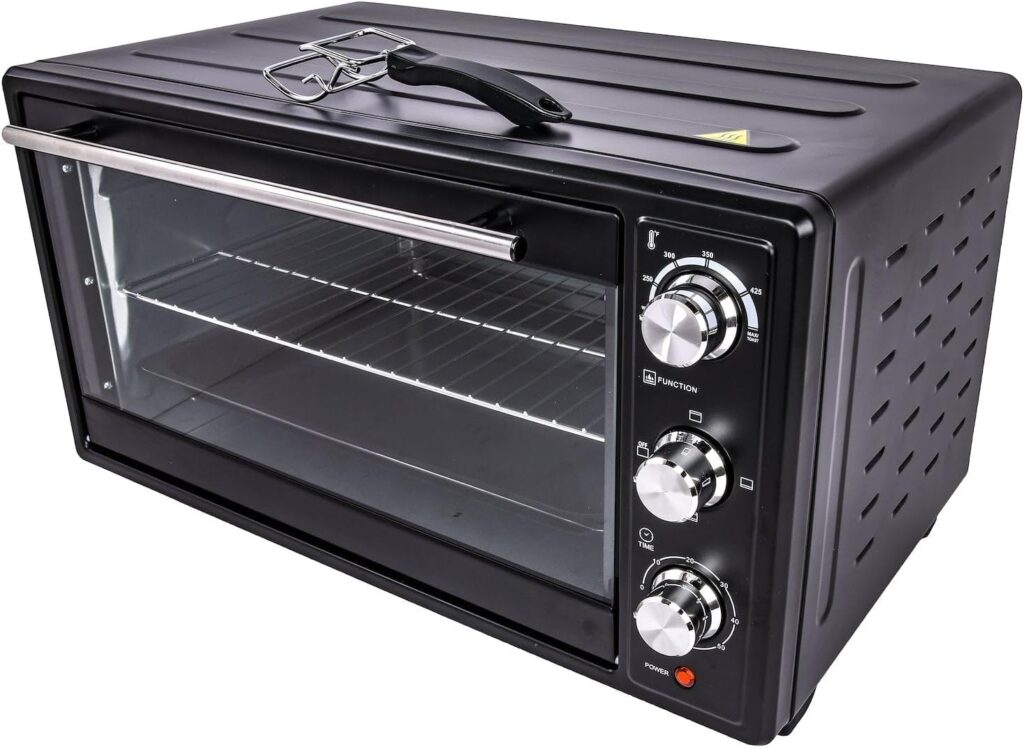

JEGS Bench Top Powder Coating Oven (81430)
The JEGS Bench Top Powder Coating Oven 81430 is built for hobbyists and automotive enthusiasts who regularly coat brackets, calipers, suspension components, and other small metal parts. It features a 1600W heating system, reaches temperatures up to 450°F, and offers a spacious interior that accommodates larger workpieces than many competing benchtop ovens. Its straightforward controls and fast heat-up time make it ideal for users looking for reliable curing performance without moving to a full-size industrial oven.

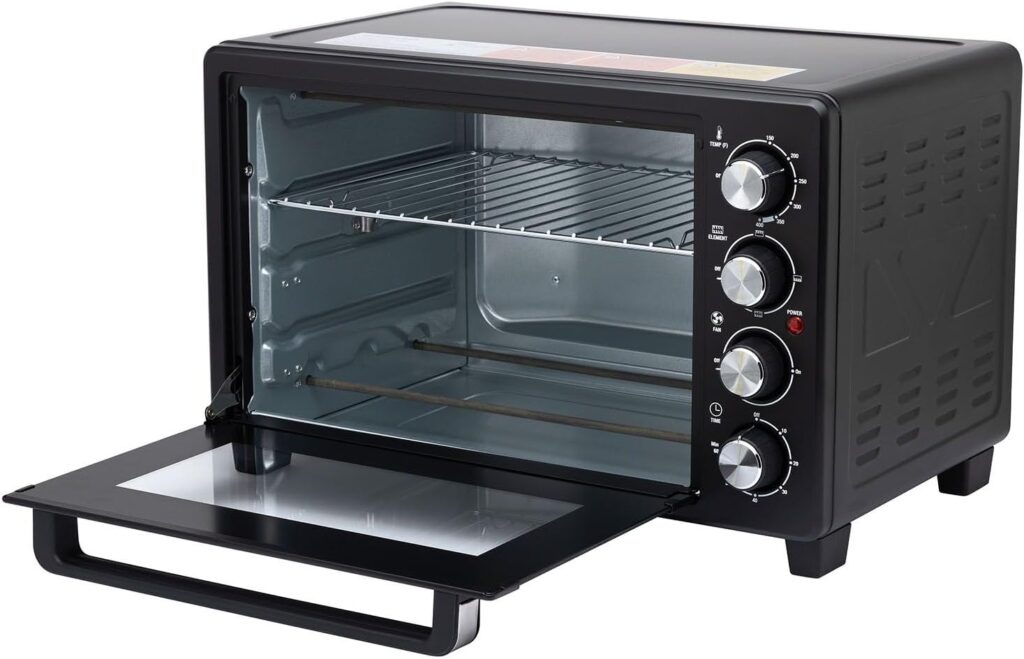

Eastwood HotCoat PCS-250 Powder Coating System & Benchtop Oven Kit
If you’re new to powder coating, the Eastwood HotCoat PCS-250 System & Benchtop Oven Kit is one of the best all-in-one starter packages. It combines Eastwood’s dual-voltage powder coating gun with a dedicated curing oven, allowing beginners to start coating immediately without purchasing separate equipment. The system delivers consistent finishes, simple operation, and excellent value, making it a favourite among DIY automotive restorers and small fabrication shops.

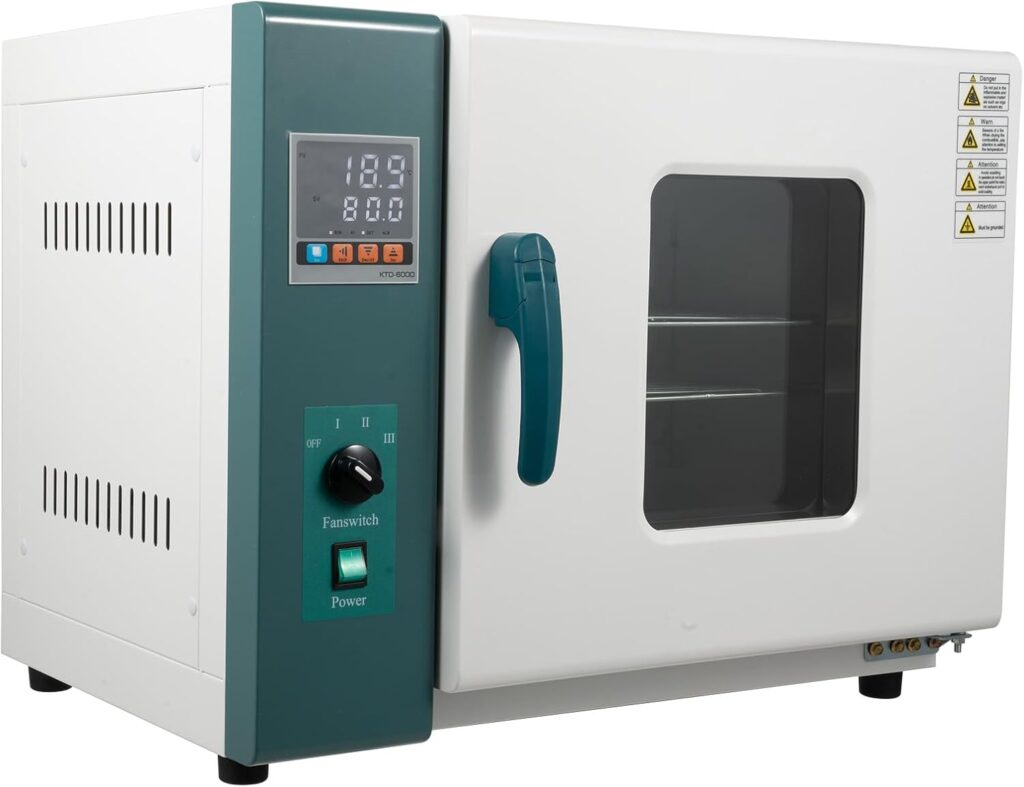

VEVOR Powder Coating Oven (45L Laboratory Oven)
The VEVOR 45L Powder Coating Oven is a practical choice for users who need a larger chamber for curing small production batches. It offers precise digital temperature controls, even heat circulation, and a durable stainless-steel construction. Capable of temperatures up to approximately 482°F (250°C), it works well for powder coating small metal components, tools, and fabricated parts. Its combination of capacity and affordability makes it popular among small businesses and growing workshops.
Frequently Asked Questions
What is the temperature that the oven used for this coating must reach?
The majority of powders can cure between 350°F and 400°F, but the exact number is determined by the data sheet for the powder’s technical specifications. Certain low-cure powders can be at as little as 300aEUR “325AdegF.
How long will powder coating cure?
The typical time is 10aEUR- 20 minutes after the component is at the temperature it was intended to reach, not when the Coating Oven door shuts. The parts that are thick or heavily racked may require an additional 10aEUR- 15 minutes to reach the temperature.
Can I construct an oven for powder coating on my own?
Many hobbyists construct one using aluminum sheet, angle iron, as well as electric heaters or convert an old toaster or oven in the kitchen. It is suitable for use on a small scale, but the airflow’s consistency and safety features aren’t as strong as an industrially designed device.
Is an oven for powder coating suitable for use at home?
It is possible, but with the following precautions: keep it in a well-ventilated area free of flammable substances, use it to treat (spray within a distinct space), and be sure not to allow a converted oven back to food usage afterward.
What is the difference between a paint coating oven and spray booth?
The booth is where the powder is applied electrostatically on the component. The oven is a different step in which the coated part is then cured by heating. NFPA 33 is the one that governs the booth/spray aspect; NFPA 86 governs the oven/cure side.
Gas or electric- which is more efficient?
Electric heating is less complicated and more frequent for smaller ovens; gas is more efficient and economical as the oven’s size increases to around 40 square feet, as electric heating becomes less efficient at this size.
What is the cost of the cost of an oven to coat powders be?
DIY as well as Hobbyist ovens cost between $200 to 1500. Small batch ovens that are designed for commercial use could be found between 1500 and 10,000. Conveyor ovens specially made for industrial use begin at $10,000 but can go up until $50,000 in the event that you need bigger, more intricate customized apparatus.
What size of oven do I require? **
Size to accommodate your largest part, plus room for growth to a EUR, not just the size you’re covering today—the most frequent problem for first-time buyers.
Conclusion
The best powder coating oven is a matter of three factors, which are: how large your components are, how much capacity you operate, and what you’re willing to spend upfront and over time. An electric stove for the bench or a properly managed converted appliance is sufficient for those who are interested in hobby or occasional projects. The growing shops require an oven that can handle a large batch and has space to expand. Large-scale operations warrant the switch to conveyors and gas. Whatever tier you land in, get the part-temperature-versus-oven-temperature distinction right from day one- it’s the single factor most responsible for finishes that fail early.
