If you’ve ever sprayed your part with a coating of powder and then watched it emerge from the Powder Coat Oven looking perfect -or, even more so, watching it emerge thin and chalky — you’ve already realized that the Powder Coat Oven does more than most people believe it is capable of. The spray gun receives all the attention, but it’s the Powder Coat Oven that’s the place where the finish is made permanent.
A powder coat oven is an enclosed, temperature-controlled chamber built to cure powder coat oven after it’s been sprayed onto a grounded metal part. Inside, the sustained heat causes the chemical reaction known as cross-linking. It transforms the loose powder into a solid, continuous, chip-resistant shell. Without this heat cycle at the correct temperature, maintained for the appropriate length of time, the coating will never be fully bonded regardless of how great the job of spraying looks.
This guide explains the functions of these Powder Coat Ovens as well as the various models available, the right way to choose the right size, which temperatures and timings to anticipate, and what to consider between making your own, purchasing new or used, or avoiding ownership altogether and outsourcing the work.
Why the Oven Matters More Than People Think
The coating is applied dry. It isn’t “dry” the way wet paint is; it cures. The reason for this is that curing is a singular chemical process. When the powder is cross-linked during heat, it cannot be remelted or reshaped like a thermoplastic. If the material doesn’t become sufficiently hot, or for sufficient time, the reaction ceases halfway through, leaving you with a layer that appears good but fails in the beginning and starts chipping, flaking, or breaking down with chemical exposure.
This is where the majority of small shops, and even small-scale businesses, are entangled. Cure specifications are written for the actual temperature of its surfaces, not for the temperatures of the air inside the Powder Coat Oven. A small bracket and a heavy cast-iron enclosure can be in the same Powder Coat Oven at the same temperature, yet require a different amount of time to fully cure because the more substantial part needs more time to warm all the way through. This is among the main reasons that DIY powder coating projects do not meet the quality standards.
Types of Powder Coat Ovens
Many different setups require the same oven. Here’s how the most popular categories are stacked:
| Oven Type | Best For | Rough Cost Range | Notes |
|---|---|---|---|
| Converted kitchen or toaster oven | Very small hobby projects | Free–$300 | Not recommended for regular powder coating because of uneven temperatures and potential fire hazards. |
| Small purpose-built powder coating oven | Small parts, brackets, and housings | $300–$3,000 | Designed specifically for powder coating. Plug-and-play with a low learning curve. |
| DIY-built insulated oven | Garage workshops and growing businesses | $500–$3,000 | Can be customized to your needs, but requires fabrication skills to build safely. |
| Electric commercial batch oven | Professional workshops and production | $3,000–$15,000 | Reliable, certified, and provides consistent curing performance. |
| Gas-fired industrial oven | High-volume manufacturing | $10,000–$50,000+ | Lower operating costs at high production volumes but requires gas service and proper ventilation. |
| Walk-in/Drive-in oven | Large frames, gates, furniture, and heavy fabricated parts | $25,000–$100,000+ | Large footprint with significant installation and infrastructure requirements. |
- Infrared (IR) cure oven: Small-gauge, quick-turnaround work; $5,000-$40,000 cycles, but less accommodating on complicated shapes
For the majority of hobbyists who paint wheels, brackets, or small automotive components, a benchtop Powder Coat Oven or a small DIY-built box oven is sufficient for the task. Companies that do regular client work generally outgrow this setup in a short time and shift to a commercial batch Powder Coat Oven.
Cure Temperature and Time — What to Actually Expect
Cure schedules differ by powder chemistry, and the technical data sheet of the manufacturer is always the most authoritative. But, here’s a general spectrum you’ll find in the most typical powders:
| Powder Type | Typical Cure Temp | Typical Cure Time |
|---|---|---|
| Standard TGIC Polyester | 375–400°F (190–204°C) | 10 minutes |
| Epoxy | 350–375°F (177–190°C) | 10–20 minutes |
| Hybrid (Epoxy-Polyester) | 350–390°F (177–199°C) | 10–15 minutes |
| Polyurethane | 350–400°F (177–204°C) | 15 minutes |
| Low-Cure Powder | 250–300°F (121–149°C) | 10–20 minutes |
A general guideline is to begin the timer when the part itself* is at a temperature, but not until the Powder Coat Oven display reaches the temperature set. For small parts, it’s near the same time. For high-mass or thick components, there may be a significant delay at times, several additional minutes, before the metal finally catches all the air around it.
Sizing Your Oven: Don’t Guess
The most frequent apprehension among builders and buyers who are first-time buyers. The solution is easy: take a look at your largest piece, not the average size, and then add 4 to 6 inches of clearance to each side to allow airflow as well as rack room.
Starting points rough that shops typically use are:
Small parts/hobby jobs (brackets and small tools) approximately 24-” x 24″ x 36″
Automobiles and small components about 36″ x 36″ x 48″
Auto body parts that are complete (hoods and bumpers) approximately 6 8′ x 6′ 8′
Frames, furniture, gates: 8-foot plus walk-in chamber
It’s not free either -larger chambers take longer to heat and will cost more for each cycle, even for small jobs.
Building a DIY Powder Coat Oven
If you’re a casual or small-scale company who is comfortable with the basics of manufacturing, a closed container Powder Coat Oven might be a feasible alternative. The fundamental procedure is this:
- Build or repurpose frame -such as angle iron, steel sheet, or a stripped-down enclosure similar to the old cabinets.
- Insulate well Ceramic fibre or mineral wool that is rated at least 500 degrees F, minimum 2 inches thick on walls everywhere.
- Add a source of heat – electric strip heaters that are sized according to the chamber’s size are the most popular DIY method.
- Install a circulation fan– high-temp rated to eliminate cold spots and to keep heat moving throughout.
- Make use of a PID temperature controller– a basic thermostat swings too much. A PID controller has a steady set point.
- Place a thermocouple on the part level, not only in the vicinity of the heating element, to ensure your readings reflect what the device actually experiences.
- Vent to the outside — off-gassing throughout treatment requires a place to go which isn’t your lungs.
- Test without any liquid, then try it with an old piece of scrap as well as a temperature logger before you trust it using real-world work.
Before you start your first real task, you should conduct a quick check to ensure that the system is able to hold the desired temperature of +10degF for twenty minutes. Does any wire have a view of the source of heat? Does the vent route to the outside? These tiny things are the things that separate a secure, usable Powder Coat Oven from a danger.
Buying a Commercial Oven: What Actually Matters
If you’re beyond the DIY phase or are operating this as a business, few specifications are worth examining prior to purchasing:
UL, ETL, or CSA certification ensures that it meets the recognized safety and electrical standards
Insulation thickness and wall construction
Recovery Time— How fast the Powder Coat Oven can return to temperature following the door has opened
Documented temperature uniformity -Reputable manufacturers will provide a variance in the spec across the chamber
Digital controller with data loggingis a must to control quality and warranty issues
Warranty duration with access to local repair or service parts
- Gas or electrical requirements that are realistically matched to the building you already have
DIY Vs. Commercial. Outsourcing: How to Make a Choice
A quick and easy method to deal with it:
- What size are your pieces? Wheels and small brackets, such as DIY benchtop ovens, are plenty. Furniture or frames require a walk-in.
- What’s your monthly average? If you’re able to find fewer than 20 parts per month, a DIY or used oven usually makes more financial sense. More than 100 parts per month, commercial ovens are typically able to pay for themselves.
- “Business” or a hobby? If you’re making payments to clients, code compliance and insurance issues generally prohibit conversion of kitchen appliances.
- What utilities do you have? Electric ovens are less complicated to set up; gas ovens are more affordable to run on a large scale, but require gas service.
- Can you properly vent? If your area is confined — like an apartment or garage attached with limited ventilation– outsourcing could be a better option.
This last option is one worth considering. If you have a small volume or the space you have isn’t enough, or you have a limited space, bringing your items to local powder coating shops to cure (or the entire process) is typically more cost-effective than purchasing equipment (especially for restoration projects that are one-off or even occasional hobby work. The cost of outsourced coating differs greatly based on location and size of the component, as well as preparation needed. It is recommended to obtain two estimates from local shops in your area instead of relying on a particular amount.
Common Mistakes and Warnings
- Relying on an oven that is not modified to use on a regular basis is a fire risk; unbalanced heat is usually an insurance or code issue in the case of a business.
- Trusting an oven’s air temperature over the temperature of a part -thicker parts require more time to soak in addition to a hotter setting.
Skipping ventilation: the buildup of off-gassing is a danger to health and the environment and not just a nuisance.
Undersized heating elements -cause lengthy heating times and slow recovery each time the door is opened.
No thermocouple at an angleA sensor placed near the heater can provide an inaccurate reading. The door seal is a problem if you don’t pay attention to the quality — a poor seal will leak heat and silently increase your energy bills in the long run.
Best 5 Powder Coat Oven Models Worth Buying in 2026

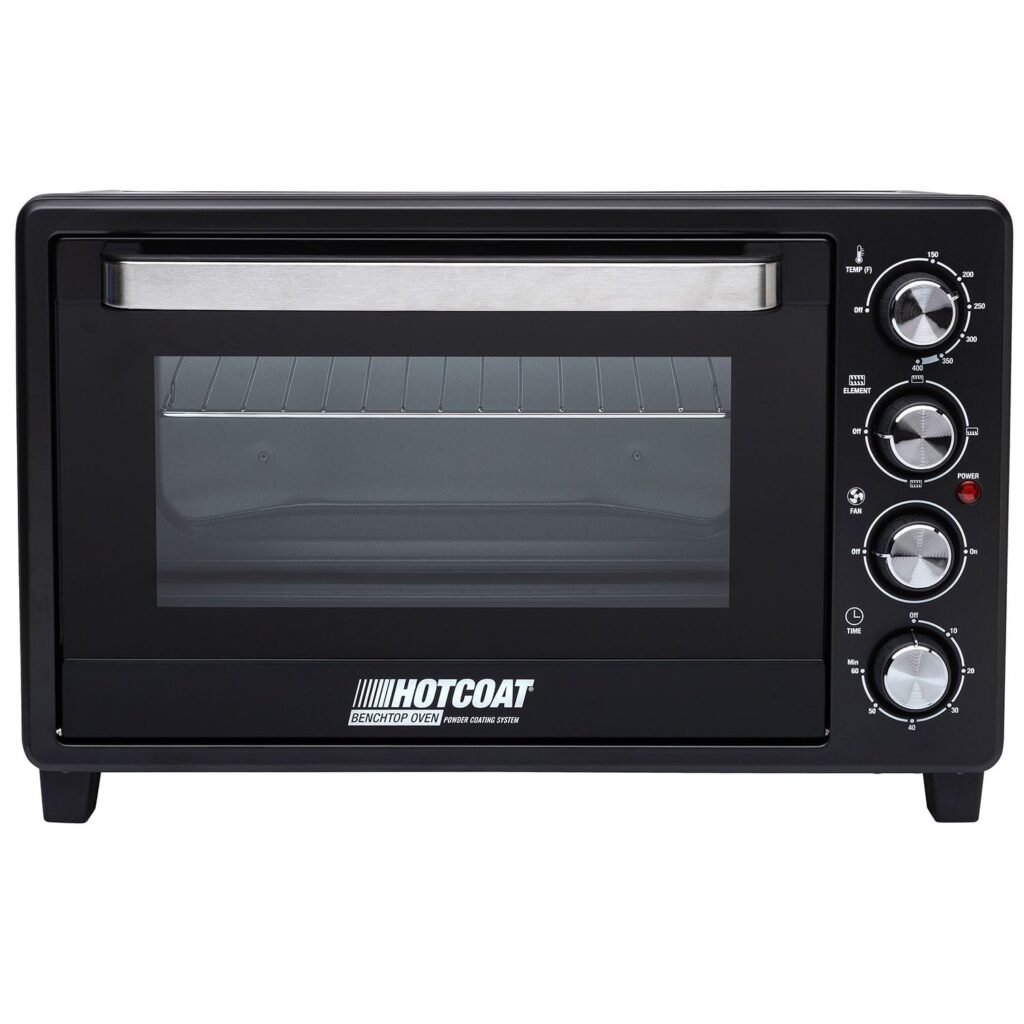

Eastwood HotCoat Benchtop Powder Coating Oven
The Eastwood HotCoat Benchtop Powder Coating Oven is a compact, electric curing oven designed for hobbyists and small workshop projects. It provides consistent heat distribution for curing powder-coated parts such as brackets, tools, and automotive components. Its space-saving design and straightforward controls make it an excellent choice for beginners and DIY users who need reliable performance without investing in a full-size industrial oven.

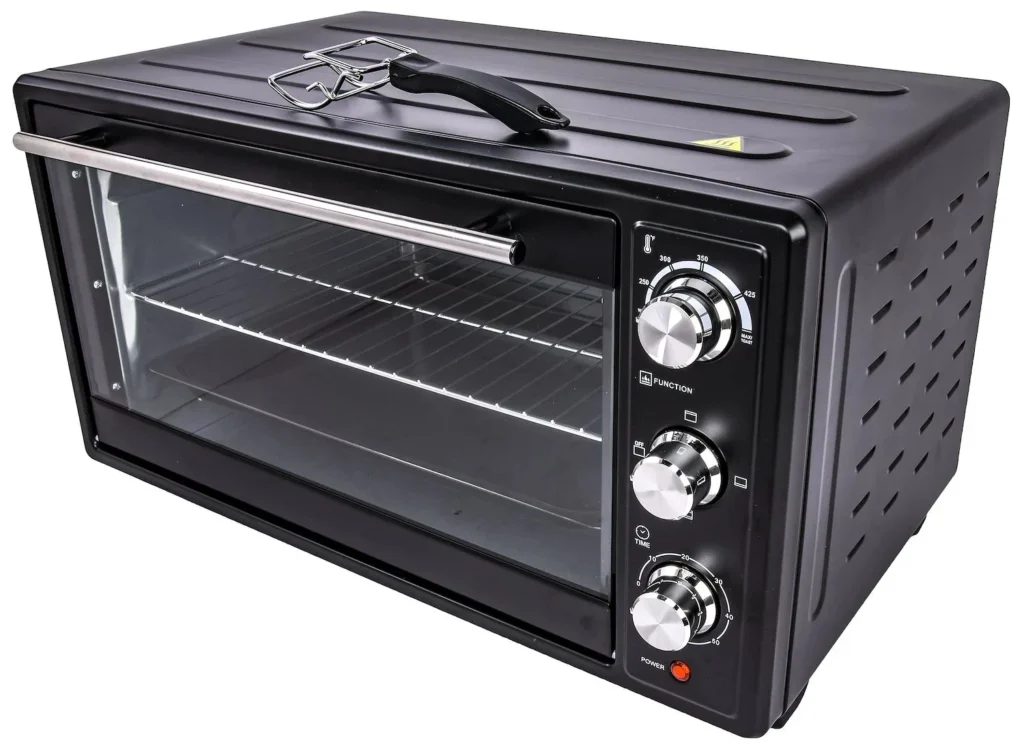

JEGS Bench Top Powder Coating Oven
The JEGS Bench Top Powder Coating Oven is a compact curing Powder Coat Oven designed for powder coating small automotive, motorcycle, and workshop parts. It delivers even, consistent heat to help produce a durable, professional-quality finish. Its benchtop design makes it ideal for home garages and DIY enthusiasts who need reliable performance while saving valuable workspace.

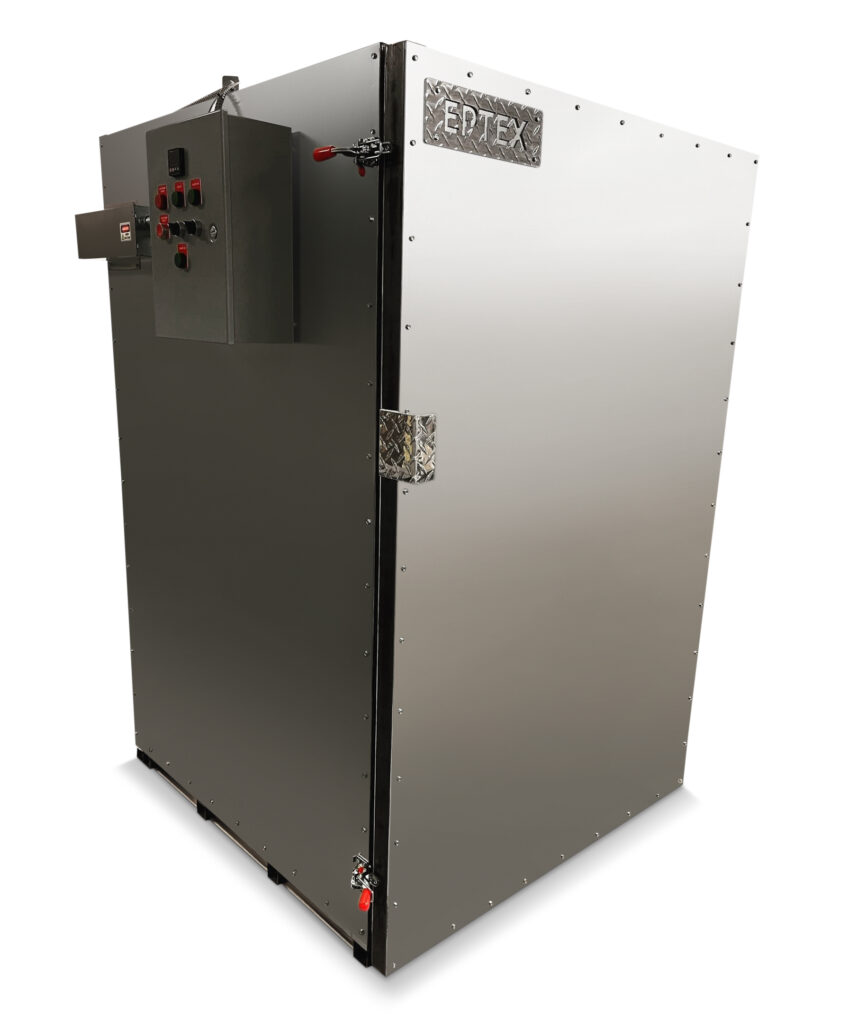

EPTEX Deluxe Shop Powder Coating Oven
The EPTEX Deluxe Shop Powder Coating Oven is built for small to medium-sized powder coating jobs in professional workshops and fabrication shops. It features a spacious interior and consistent heat circulation to ensure even curing across a variety of metal parts. Its durable construction and dependable temperature control make it a practical choice for businesses that need reliable, repeatable coating results.

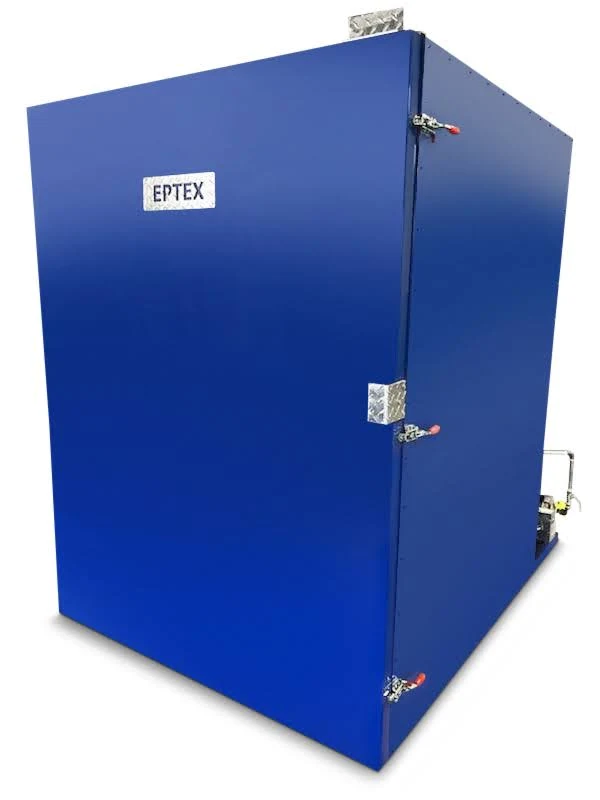

EPTEX 4’x4’x6′ Electric Powder Coating Oven
The EPTEX 4′ × 4′ × 6′ Electric Powder Coating Oven is a commercial-grade curing Powder Coat Oven designed for larger powder coating projects. Its spacious interior accommodates bulky parts and multiple components in a single batch, helping improve productivity. With precise temperature control and even heat distribution, it delivers consistent, high-quality curing for professional finishing applications.

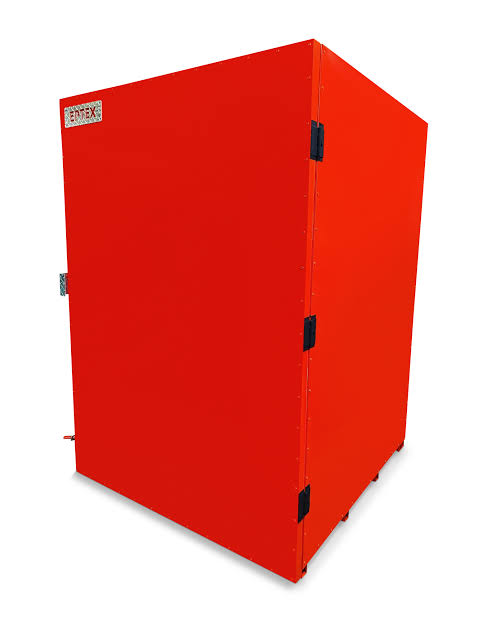

EPTEX 5’x5’x7′ Gas Powder Coating Oven
The EPTEX 5′ × 5′ × 7′ Gas Powder Coating Oven is a high-capacity industrial Powder Coat Oven designed for large-scale powder coating operations. Its gas-fired heating system provides fast heat-up times and efficient curing for oversized or high-volume batches. Built for demanding commercial environments, it delivers consistent temperatures and reliable performance for professional-quality finishes.
FAQs
Can I use a standard oven for baking powder coatings?
The only exception is for small parts for a hobby. It’s not the best choice — inconsistent heat, risk of fire, and limited ventilation are a bad long-term option, particularly in the case of anything other than casual usage.
What is the hottest temperature an oven for powder coating needs to be?
A majority of powders will cure between 350°F and 400°F; however, the exact number will vary based on the particular powder. Always refer to your technical information sheet.
How long will powder coating cure?
It typically takes between 10 and 20 minutes after the part is at a temperature that has been set to cure. Parts with higher mass or thickness will take longer to heat than those with a thin layer, even when they are within identical Powder Coat Ovens.
Can I make my own powder coater?
It’s indeed an option for small-scale shops and hobbyists. A box that is insulated with electric heating elements, circulation fans, and a PID control can create an efficient, safe curing Powder Coat Oven for less than a quarter of the cost of a commercial oven.
Which oven size do I require for my wheel?
A 36” x 36” x 48” easily fits the majority of automobile wheels, which allows airflow to flow around them.
Are gas or electric the best choice for an oven for powder coating?
Electric is usually easier to install and is more popular in smaller-to-mid-sized shops. Gas is more affordable with higher volumes, but it will require a gas supply and a complicated ventilation design.
What happens if the powder coating isn’t dried enough?
The cross-linking reaction stops early and leaves the surface soft or chalky. It also has a tendency to cracking early and also has weak chemical resistance, even though it looked great after being taken out from the Powder Coat Oven.
What is the main difference between spray booths?
Spray booths are places where powder is sprayed. spills are contained in a sealed container. The Powder Coat Oven is an additional process that is used to cure the Powder Coat Oven that has already been sprayed.
Conclusion
The best powder coat oven is a matter of three simple questions: how large the parts you have to purchase are, how much you’re running, and if it’s for a leisure activity or a business you’re establishing. Smaller and less frequent work is ideal for a benchtop Powder Coat Oven or a well-constructed diy box Powder Coat Oven. Larger-volume businesses and shops should consider an approved commercial oven that is sized for their biggest task. Likewise, those with a small capacity or limited space should not think about outsourcing all the time, since it can often save you the expense and hassle of acquiring equipment that you only use a Powder Coat Oven few times.
